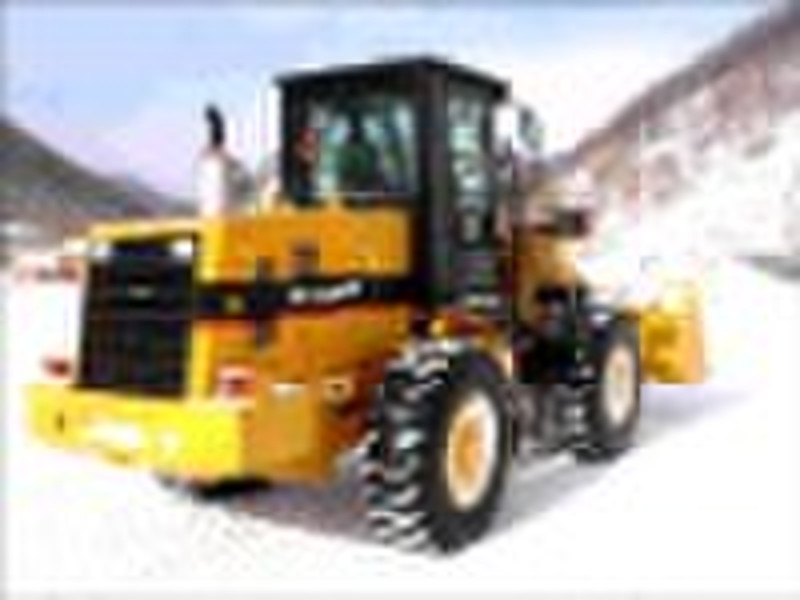

WL938 loader

Wheel Loader Model: WL938Main Specifications Diesel engineModelCummins 6BT5.9 C120TypeDirect injection, turbocharged, water coolingRated output87(KW)Rated speed2200(r/min)Max. Torque440(N·M)Min. specific fuel consumption220(g/Kw.h) Main Technical DataRated load3000(Kg)Operating weight10200(Kg)Rated bucket capacity1.7(m3)Max. breakout force96kNMax. dump clearance2850(mm)Dump reach1030(mm)Dump angle at any position≥450Pivot angle frame38±10Oscillating angle of rear axle±110Lifting time of bucket≤5.1(sec.)Lowering time of bucket≤3.0(sec.)Dumping time≤1.1(sec.)Min. turning radiusOutside of bucket5600(mm)Outside of rear wheel5205(mm) Transmission SystemTorque converter modelYJH315A-4Torque converter type3-elements. Single stageTorque ratio2.4Torque converter cooling typePressure oil circulatingTransmission case typePower shift, spur gear constantly in meshTransmission case gear shifts3 forward and 3 reverse gearsTraveling speed(Km/h)1st gear forward / reverse7.3 / 7.82nd gear forward / reverse15.7 / 16.83rd gear forward / reverse35 / 36 Implement Hydraulic SystemModel of oil pumpCBGj2100System pressure16 MPaModel of distribution valveDF32Lifting cylinder125*697(mm)Tilting cylinder150*466 (mm) Steering SystemTypeMiddle articulated frame, Co-axis flow amp. steeringModel of steering pumpCBGj2050Model of steering gearBZZ1-E400C/FKA-143020System pressure14MPaSteering cylinder70*323(mm) Brake SystemType of traveling brakeAssisted oil, 4 wheel brakeAir pressure0.7-0.8MPaType of emergency brakeAutomatic cutting air brakeType of parking brakeAutomatic boosting, inner expand hoof Axle and TireType of main reducerspiral bevel gear, single stageGear ratio of main reducer3.889Type of final reducerSingle stage planetaryGear ratio of final reducer4.941total ratios19.216Max. traction83kNSpecifications of tire17.5-25-12PR Overall DimensionLength(with bucket on ground)6863(mm)Width(to outside of wheels)2305(mm)Bucket width2460(mm)Height(To the top of the cab)3095(mm)Wheel base2750(mm)Tread1855(mm)Min. ground clearance370(mm) OptionalROPS frame Log clamp, rock bucket, snow cleaner, grass clamp, fork. Side-dump bucket, breaker
