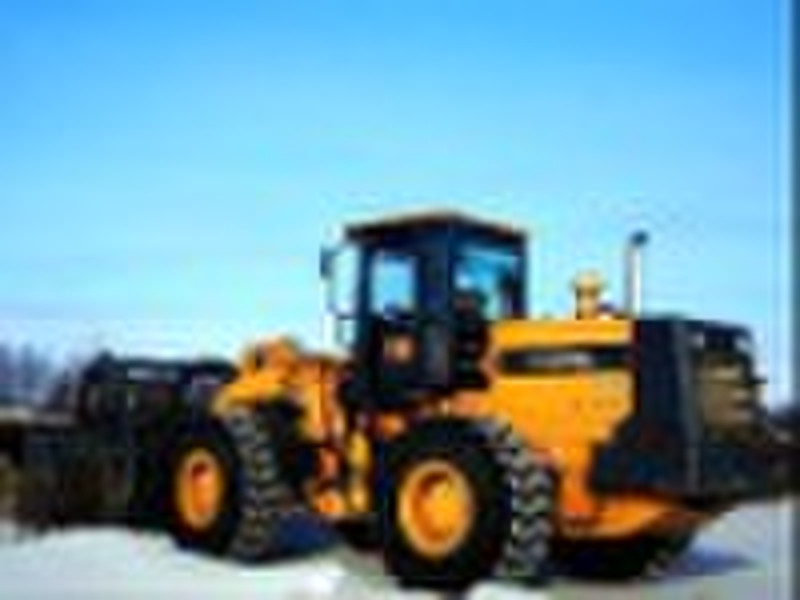

WL948 loader

Wheel Loader Model: WL948Main Specifications Diesel engineModelCummins 6BTA5.9-C169TypeDirect injection, turbocharged, water coolingRated output126(KW)Rated speed2100(r/min)Max. Torque643(N·M)Min. specific fuel consumption206(g/Kw.h) Main Technical DataRated load4000(Kg)Operating weight13200(Kg)Rated bucket capacity2.3(m3)Max. breakout force134kNMax. dump clearance2850(mm)Dump reach1050(mm)Dump angle at any position≥450Pivot angle frame38±10Oscillating angle of rear axle±110Lifting time of bucket≤6.1(sec.)Lowering time of bucket≤3.8(sec.)Dumping time≤1.8(sec.)Min. turning radiusOutside of bucket6300(mm)Outside of rear wheel5730(mm) Transmission SystemTorque converter modelYJHSW315Torque converter type4-elements. double stageTorque ratio4Torque converter Cooling typePressure oil circulatingTransmission case typePower shift, spur gear constantly in meshTransmission case gear shifts2 forward and 1 reverse gearsTraveling speed(Km/h)1st gear forward / reverse11 / 152nd gear forward36 Implement Hydraulic SystemModel of oil pumpCBGj3140System pressure18 MPaModel of multi-way directional valveD32IIModel of pilot valveDJS2-UX/UULifting cylinder150*695(mm)Tilting cylinder180*468(mm) Steering SystemTypeMiddle articulated frame, Co-axis flow amp. steeringModel of steering pumpCBGj 2063/1016-XFModel of redirectorBZZ1-E630C+FKA-146020System pressure14MPaSteering cylinder70*460(mm) Brake SystemType of traveling brakeAir over oil activate 4 wheel brakeAir pressure0.7-0.8MPaType of emergency brakeAutomatic cutting air brakeType of parking brakeAutomatic boosting, inner expand hoof Axle and TireType of main reducerSpiral bevel gear, single stageGear ratio of main reducer5.286Type of final reducerSingle stage planetaryGear ratio of final reducer4.4total ratios23.258Max. traction120kNSpecifications of tire20.5-25-16PR Overall DimensionLength(with bucket on ground)7248(mm)Width(to outside of wheels)2570(mm)Bucket width2685(mm)Height(To the top of the cab)3430(mm)Wheel base3080(mm)Tread2050(mm)Min. ground clearance400(mm) OptionalROPS frame Log clamp, rock bucket, snow cleaner, grass clamp, fork Side-dump bucket, breaker
