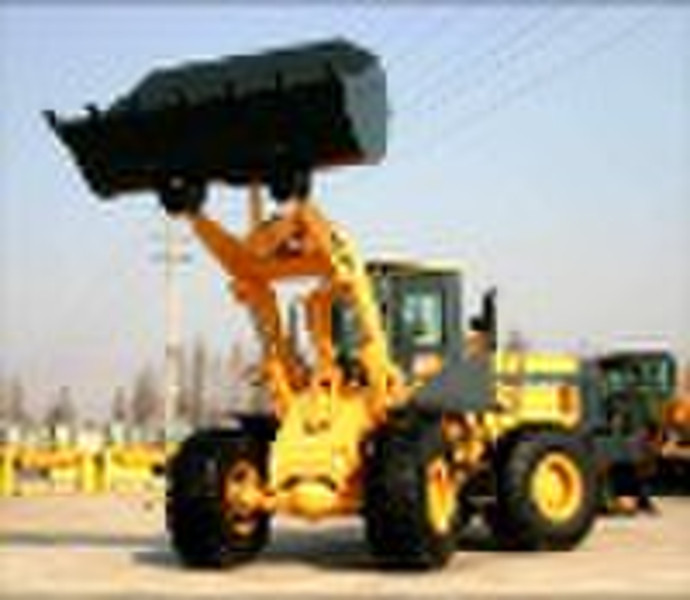

WL955 loader

Wheel Loader Model: WL955Main Specifications Diesel engineModelWD615GTypeDirect injection, turbocharged, water coolingRated output162(KW)Rated speed2100(r/min)Max. Torque843(N·M)Min. specific fuel consumption226(g/Kw.h) Main Technical DataRated load5000(Kg)Operating weight16300(Kg)Rated bucket capacity3(m3)Max. breakout force160kNMax. dump clearance3050(mm)Dump reach1190(mm)Dump angle at any position≥450Pivot angle frame38±10Oscillating angle of rear axle±110Lifting time of bucket≤6.1(sec.)Lowering time of bucket≤3.8(sec.)Dumping time≤1.8(sec.)Min. turning radiusOutside of bucket6675(mm)Outside of rear wheel5970(mm) Transmission SystemTorque converter type3-elements,single stageTorque ratio2.55Torque converter Cooling typePressure oil circulatingTransmission case typePower shift, spur gear constantly in meshTransmission case gear shifts3 forward and 3 reverse gearsTraveling speed(Km/h)1st gear forward / reverse7.05 / 9.02nd gear forward / reverse11.7 / 16.03rd gear forward / reverse34.6 / 38.2 Implement Hydraulic SystemSystem pressure20 MPatypePilot controlmulti-way directional valvehydraulicLifting cylinder160*695(mm)Tilting cylinder180*500(mm) Steering SystemTypeMiddle articulated frame, Co-axis flow amp. steeringModel of steering pumpGear pumpSystem pressure16MPaSteering cylinder90*400(mm) Brake SystemType of traveling brakeAir over oil activate 4 wheel brakeAir pressure0.7-0.8MPaType of emergency brakeAutomatic cutting air brakeType of parking brakeDrum brake, manual control cutting-off air brake Axle and TireType of main reducerSpiral bevel gear, single stageGear ratio of main reducer4.625Type of final reducerSingle stage planetaryGear ratio of final reducer4.4total ratios20.35Max. traction137kNSpecifications of tire23.5-25-16PR Overall DimensionLength(with bucket on ground)8200(mm)Width(to outside of wheels)2800(mm)Bucket width2946(mm)Height(To the top of the cab)3450(mm)Wheel base3100(mm)Tread2200(mm)Min. ground clearance450(mm) OptionalC6121 engine, ROPS frame Log clamp, rock bucket, snow cleaner, grass clamp, fork Side-dump bucket, breaker
